Touring Motorcycle Shelter: Dimensions & Specifications

The Touring Speedway Shelter is our most popular size, built for full-dress touring motorcycles with saddlebags and full windshields, like Harley-Davidson baggers and Honda Gold Wings. Here are its exact dimensions, the interior clearance along its length, and what to know before you store a touring bike outside.

Shop the Touring Shelter Compare All Sizes

Touring · Large size · Most popular

Touring Shelter Dimensions & Specs

Inside: 136" L × 54" W × 77.75" H
Outside (footprint): 138" L × 56" W × 79" H
Weight: 75 lb
Anchoring: 6 anchor points in the frame, 6 concrete/asphalt anchor bolts included
Frame: 3/4" square-tube, 16-gauge powder-coated steel that holds 150+ lbs of snow
Cover: waterproof 600D urethane-coated polyester with taped seams
Setup: about 20–30 minutes, one person
Warranty: 10 years on metal parts

$490.95

Add to Cart Product Details

Open the full-size Touring drawing ↗

Touring Speedway Shelter with a silver Double Duty UV cover installed

With the Double Duty UV cover

Woman beside an orange motorcycle in an open Touring Speedway Shelter

Open clamshell, ride straight in

Interior clearance

How Tall a Bike Fits in the Touring Shelter

The Touring Shelter's clamshell roof peaks at 77.75" about 61" back from the front, then slopes down toward the rear as the ribs fan out. That's plenty of headroom for most full windshields, but the number that matters is the clearance at the spot where your bike's tallest part will sit.

How to check your fit:

Measure your bike's length from the front tire to the rear fender or tour pack. It needs to be under 136".
Measure the width across the saddlebags or mirrors, whichever is wider. It needs to be under 54".
Measure the height to the top of the windshield and compare it with the clearance at that spot in the chart.
Still close? Tape out a 136" × 54" rectangle on the ground and roll your bike in.

Touring clearance chart

77.75" at the peak, about 61" from the front
71.36" at the front frame post, about 24" from the front
71.1" at 88.51" from the front
67.3" at 94.78" from the front
63.33" at 101.21" from the front
49.2" at 113.94" from the front
40.15" at 120.58" from the front

All heights are measured inside the shelter from the ground up. See every dimension on the full-size drawing.

What Fits in a Touring Motorcycle Shelter?

The Touring is built for full-dress touring motorcycles, including the largest touring Harleys and Gold Wings, with room left over for riding gear. Owners use it for:

Harley-Davidson baggers and touring bikes with hard saddlebags and a full fairing or windshield
Honda Gold Wings and other full-dress tourers
Cruisers with saddlebags or a tall windshield
ATVs
Ride-on lawn mowers
Firewood, tools, and outdoor gear

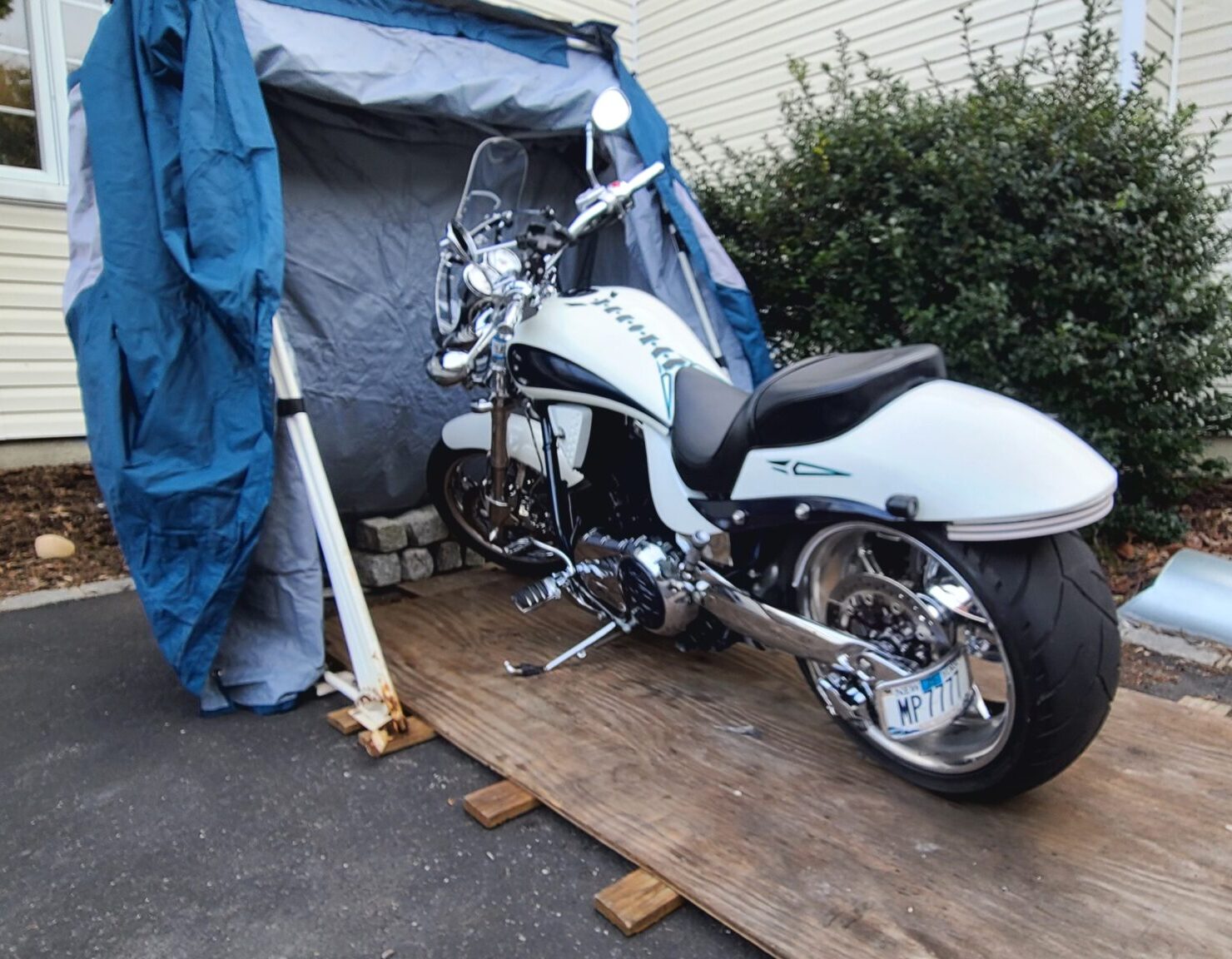

Cruiser on a wooden base

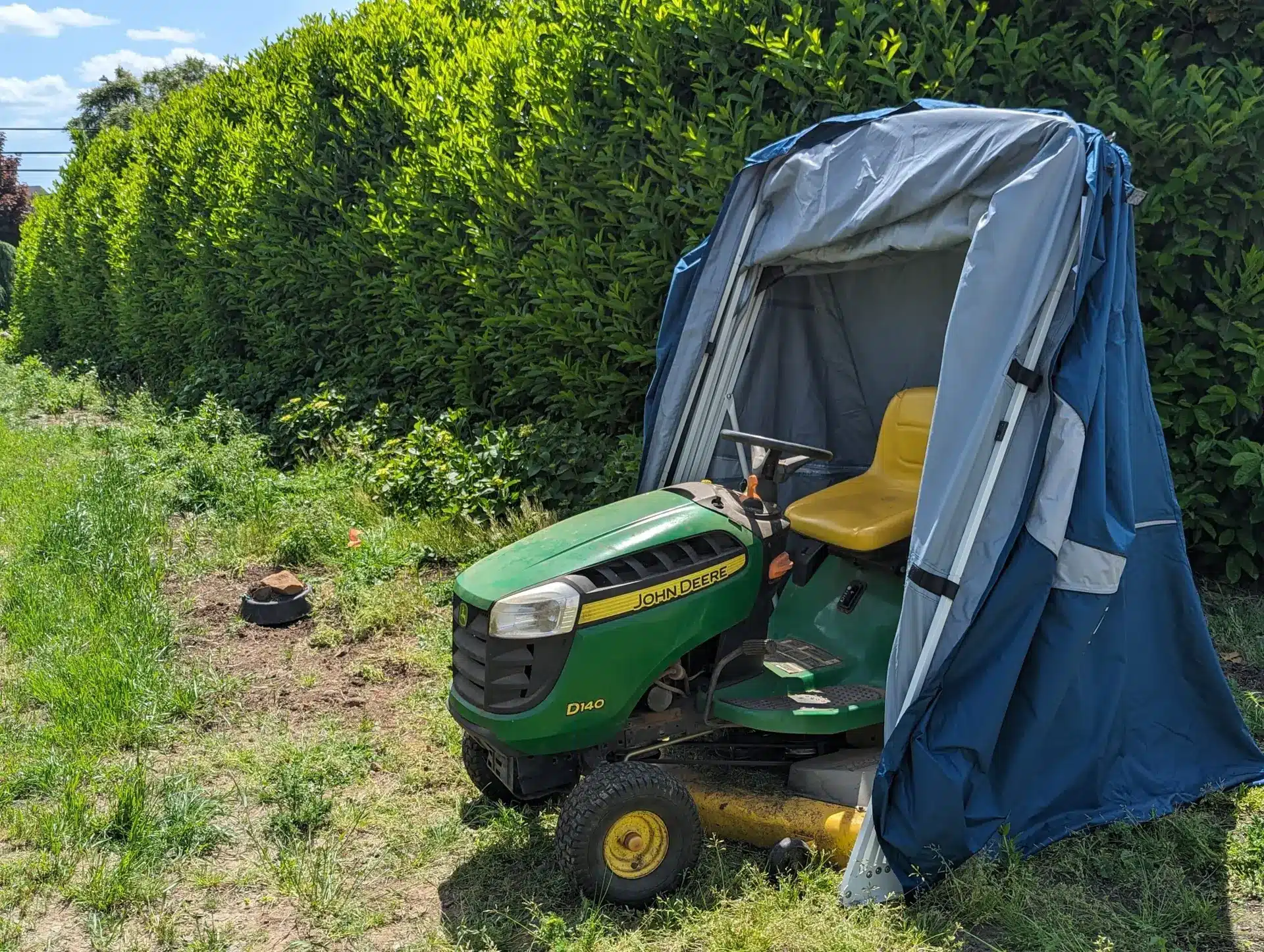

Riding mower storage

Through a snowy winter

Shaded through the summer

Will a Harley Bagger or Gold Wing Fit?

Yes. Full-dress touring bikes are what the Touring Shelter was designed around, including the largest touring Harleys and Gold Wings. To be sure, measure three things and compare them with the shelter:

Length: front tire to the rear fender or tour pack, under 136"
Width: across the saddlebags or mirrors, whichever is wider, under 54"
Height: to the top of the windshield, checked against the clearance chart above

Running an extra-tall windshield, a trailer hitch, or aftermarket bags? Email us your measurements and we'll double-check.

Touring vs. Deluxe: When to Size Up

The Deluxe is nearly the same length and height as the Touring, but it's 24" wider inside (78" vs. 54"). Size up to the Deluxe if you're storing:

A trike or Can-Am Spyder
Two motorcycles side by side
A small golf cart, UTV, or snowmobile

For a single touring bike, the Touring is the better fit: it's narrower, lighter (75 lb vs. 82 lb), and takes up less of your driveway. Riding something smaller without bags? The Sport Shelter is more compact. Compare all three sizes.

Storing a Touring Bike Outside in Winter

Touring bikes are heavy, expensive, and full of electronics, so a little prep before winter goes a long way:

Clean it thoroughly, including any road salt, and let it dry before you close the shelter.
Top off the tank with fuel stabilizer and run the engine to circulate it through the fuel system.
Plug in a battery tender. Alarms, clocks, and other accessories slowly drain a battery over a long layup.
Inflate the tires to spec and park on rubber flooring to keep them off cold, damp ground.
Brush off heavy snow. The steel frame supports 150+ lbs of snow, but clearing deep buildup keeps the cover in top shape.
Open the vented windows on mild, humid days so condensation can escape.

More reading: 4 ways to extend the life of your motorcycle cover, the benefits of a clamshell motorcycle cover, and how to protect your motorcycle from falling branches.

Touring shelter FAQ

Touring Motorcycle Shelter Questions

Will a Honda Gold Wing fit in the Touring shelter?

Yes. The Touring Shelter fits full-dress tourers, including Gold Wings and the largest touring Harleys. Inside, it's 136" long, 54" wide, and 77.75" tall at the peak.

Is there room for riding gear next to my bike?

Yes. The Touring leaves extra room beside a touring bike for helmets, jackets, and other riding gear.

Can I store a riding lawn mower or ATV in it?

Yes. Many owners use a Touring Shelter for a ride-on mower or an ATV. If yours has a tall seat back or roll bar, compare its height with the clearance chart above.

How much does the Touring shelter weigh?

75 lb, most of it in the 3/4" square-tube, 16-gauge steel frame. It comes with 6 concrete/asphalt anchor bolts and packs into a heavy-duty carry bag.

Can I use the Touring Shelter inside a garage?

Yes. It works outdoors in all weather or inside a garage, where it keeps dust and dings off your bike.

How much snow can the Touring shelter hold?

The 16-gauge steel frame supports 150+ lbs of snow. Anchor it with the included bolts, and brush off deep snow after big storms to keep the cover in good shape.

Ready for Your Touring Shelter?

It usually ships the next business day. Not sure it's the right size? Email us a photo of your bike and its measurements and we'll tell you which shelter fits.
